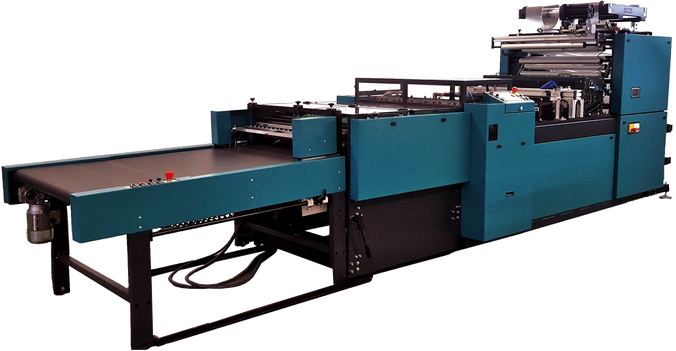

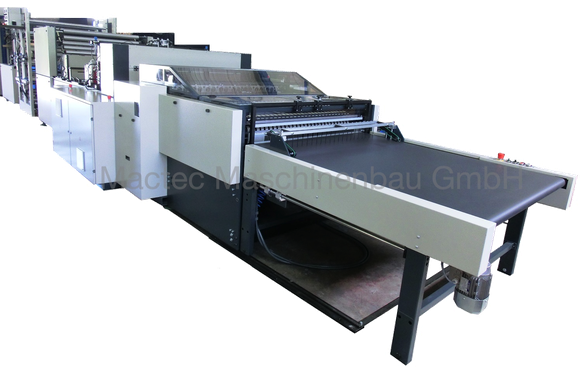

Side sealer
For the automatic production of side sealing bags from sealable polyethylene and polypropylene materials:
- side sealed bags
- flap pouch
- optional for zip lock bags
- optional for adhesive bags
Our machines are also suitable for bio- and recycled films.
Depending to your needs you can integrate additional module options into your Mactec SM machine.
| Technical Data | SM 800 | SM 1100 | SM 1400 |
| Working width | 100 - 800mm | 200 - 1100mm | 200 - 1400mm |
| Bag size | 40 - 800mm | 60 - 800mm | 70 - 800mm |
| Film thickness | 2x0,015 - 0,120mm | ||
| Web speed |
85m/min |
||
| Cycle speed | 10 - 300/min | 10 - 300/min | 10 - 250/min |
| Max. roll diameter unwind | 800/1200mm | ||
If you are interested in our machines, please don't hesitate to contact us.
